Plinth Frames

Plinth frames are used to create a base for pumps and other similar machines / appliances. In most cases they are 100mm or 150mm High. Once assembled the plinth frame is placed into position, secured to the ground and filled with concrete. Corners come sealed to prevent leaking whilst filling with concrete.

Category:

Description

Plinth frames are used to create a base for pumps and other similar machines / appliances. In most cases they are 100mm or 150mm High. Once assembled the plinth frame is placed into position, secured to the ground and filled with concrete. Corners come sealed to prevent leaking whilst filling with concrete.



Features & Benefits

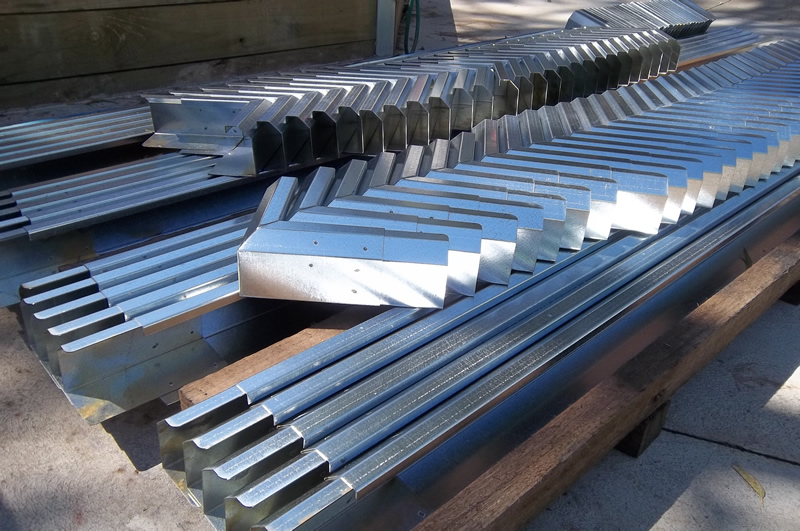

Self – Assembled Plinths Frames

Features & Benefits

  • Easy to assemble
  • No Limit to size, just keep extending
  • Buy straights and / or corners complete with joining sleeve.
  • Off the shelf Items
  • Steel used – 1.2mm Quality Australian Galvanized
  • No Welding required, just slip together, rivet or tek screw, lock it down and fill with concrete

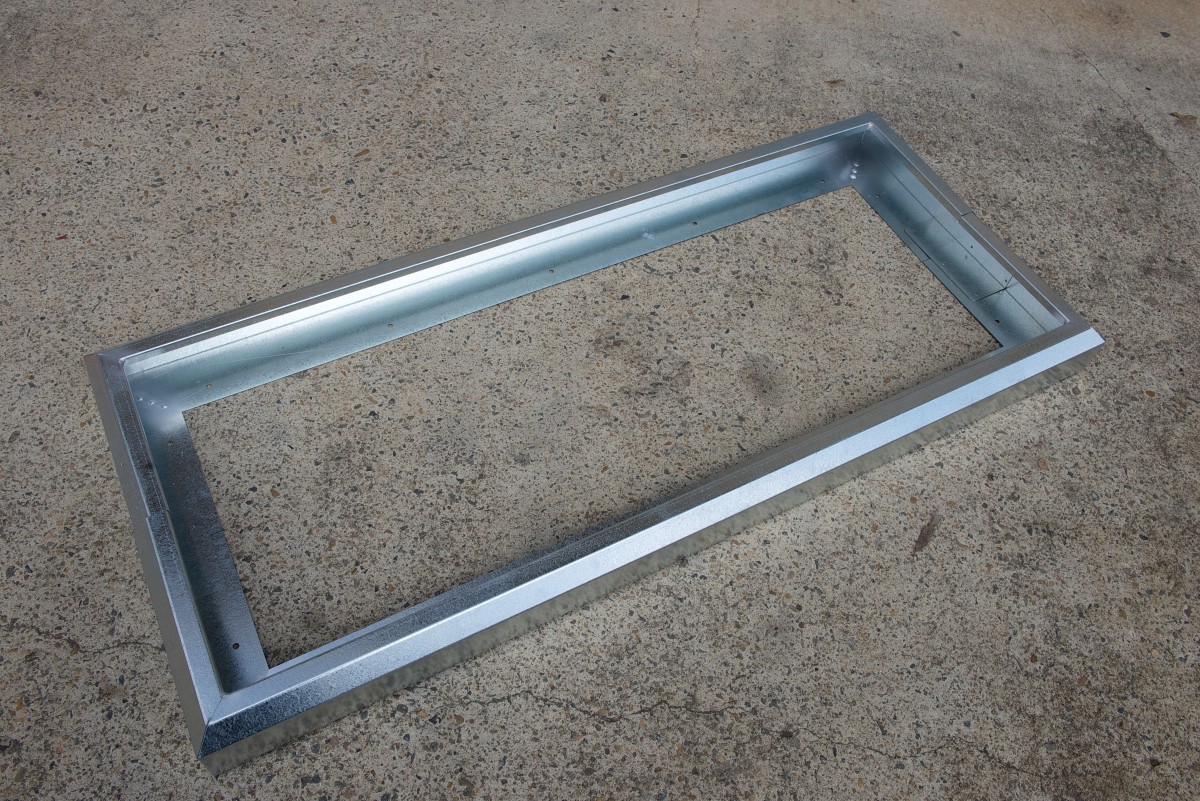

Fully – Assembled Plinth Frames

Features & Benefits

  • Easy to install
  • Can be made to your requirements
  • Quick 3 day turnaround on order, depending on availability and workload
  • Fixing holes cut in base for quicker installation times
  • Steel used – 1.2mm Quality Australian Galvanized
  • No externally welded joints
  • No future rusting issues
  • All frames cut on “High Definition Plasma” for superior edge finish
  • All frames folded on CNC press break for consistent quality
  • Just lock it down and fill with concrete

Technical Information

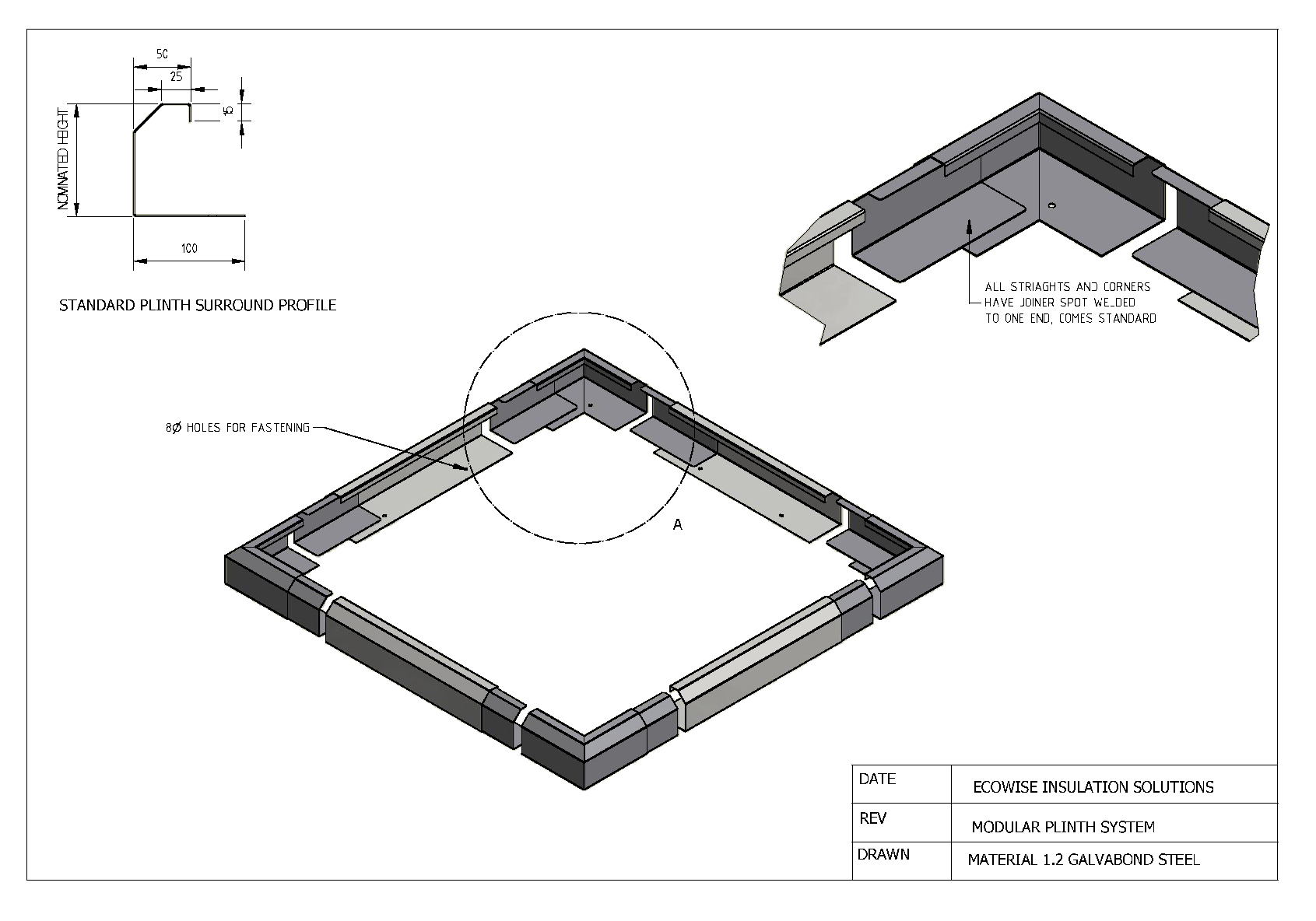

Plinth-Profile-and-Diagram
