Thermobreak No Clad

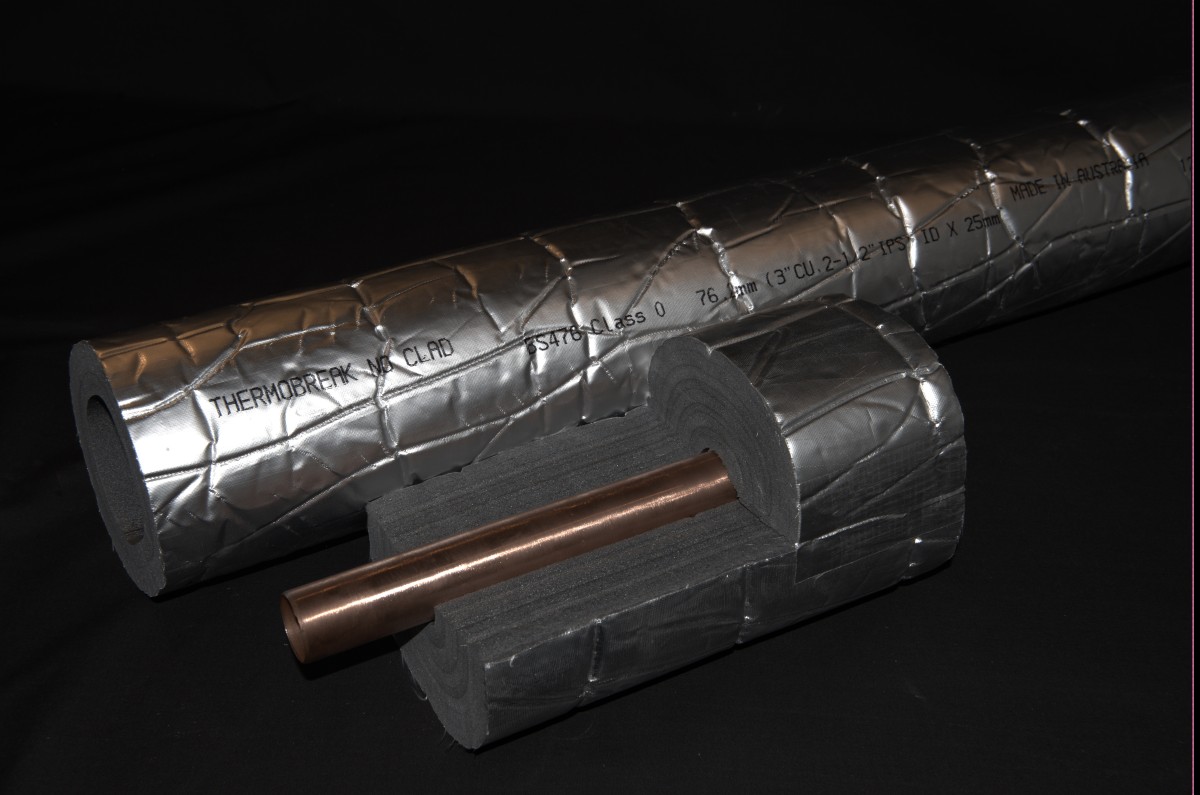

Thermobreak No Clad is a completely closed cell, physically crosslinked polyolefin foam pipe insulation with heat bonded, puncture resistant & multilayered aluminium foil which is reinforced with ultra tough close weave scrim. Thermobreak No Clad is salt water resistant, UV / weather durable and designed to resist mechanical damage whilst it can still be easily cut to requirements using a sharp knife.



Description

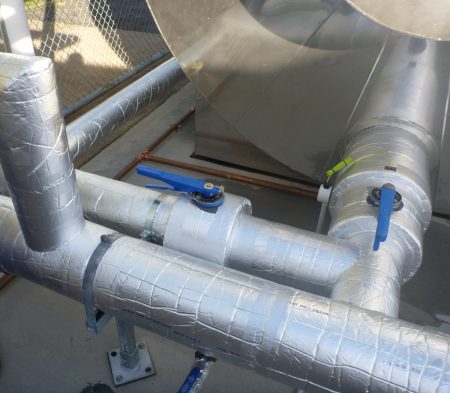

The composition of Thermobreak No Clad gives installers a cost effective alternative to metal sheathing in some areas. Thermobreak No Clad has a large operating temperature range of -80˚C to 100˚C which give it the capabilities to be use on Hot Water, Chilled Water, Heating water, Condensation Lines, Refrigeration and more.

A specially developed UV and salt-water resistant reinforced aluminium foil tape is available to ensure complete system integrity.

Thermobreak No Clad is available in 2 metre lengths and is pre-slit on the longitudinal, which provides the installer quick and efficient installation. This also allows for less joints, saving on labour cost and consumables.   Thermobreak No Clad has a density of 25kg/m3 which gives it greater flexibility, whilst still being tough and durable. The lower density also allows Thermobreak No Clad to have one of the best thermal insulating properties available on the market.

Features & Benefits

Features & Benefits

  • Thermobreak No Clad  is the only pipe insulation manufactured in Australia that is FM Approved.
  • Closed Cell – Will not absorb water should condensation occur.
  • Green Star – Green Star Compliant with VOC’s and Global warming potential & Ozone depleting potential.
  • Puncture & Salt water Resistant.
  • Fire Rating – 4 Zero Fire Rating, complies with standard AS1530.3(1999)
  • Smoke Density & Toxicity – Conforms to ISO 5659-2 “Smoke Density & Toxicity”.
  • UV Resistant – Foil used on Thermobreak No Clad allows it to be used outdoors.
  • Anti Microbial.
  • Non Fibrous – Thermobreak does NOT contain (SMF) Synthetic Mineral Fibres, so no gloves or respiratory masks required upon installation.
  • Temperature Range – minus 80˚C to 100˚C
  • Lengths & Sizes – Available in 2 metre lengths with full range of Copper, PVC & Steel sizes.
  • Wall Thickness – Available in 25mm, 40mm, 50mm other sizes may be made to order.
  • Developed & Manufactured in Australia.

Technical Information

Thermobreak No Clad Brochure

Thermobreak No Clad Technical Data Sheet

Thermobreak Material Safety Data Sheet
